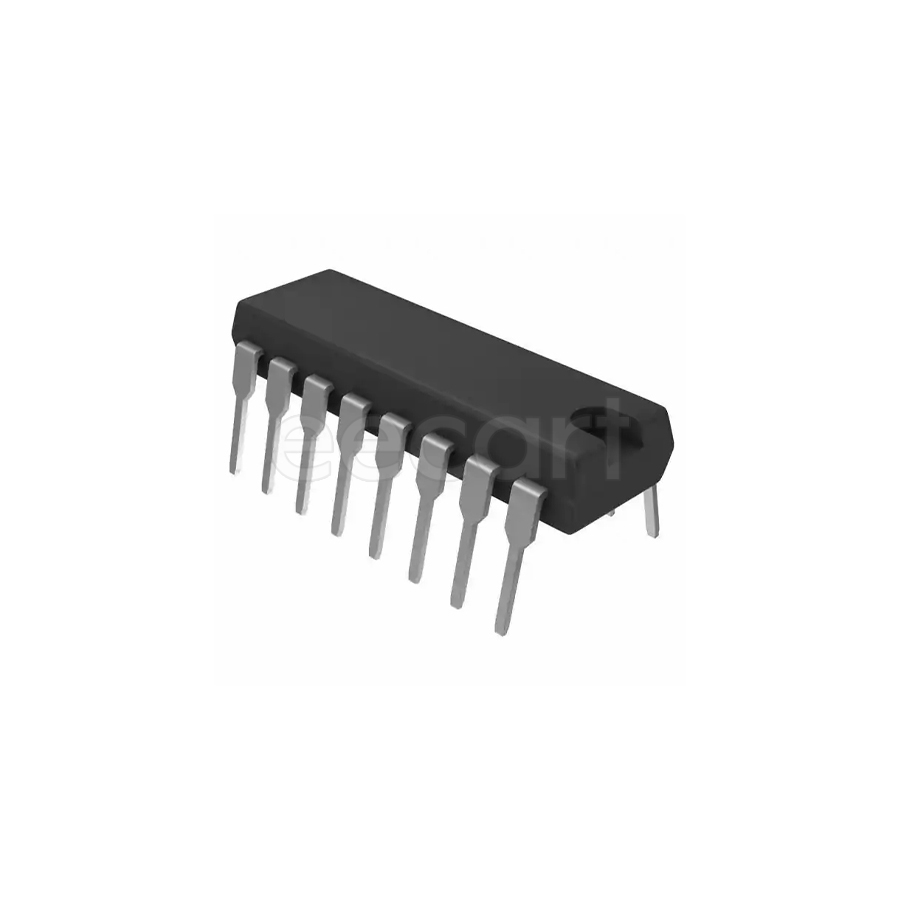

CD4046BE
Manufacturer:
Texas Instruments
Mfr.Part #:
CD4046BE
Datasheet:
Description:
Clock Generators, PLLs, Frequency Synthesizers PDIP-16 Through Hole Yes 2.4 MHz
| Parameter | Value |
|---|---|
| Length | 19.3 mm |
| Width | 6.35 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 16 |
| Height | 5.08 mm |
| Thickness | 3.9 mm |
| Radiation Hardening | No |
| Voltage | 20 V |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Frequency | 2.4 MHz |
| Number of Elements | 1 |
| Number of Circuits | 1 |
| Lifecycle Status | Active |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 3 V |
| Number of Bits | 1 |
| Max Frequency | 2.4 MHz |
| Input | CMOS |
| Nominal Supply Current | 10 mA |
| Number of Gates | 1 |
| PLL | Yes |
| Type | PLL |
| Divider/Multiplier | Yes/No |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Operating Supply Voltage | 3 V to 18 V |
| Packaging | Tube |
| RoHS | Compliant |
Stock: 2193
Distributors
pcbx
pcbxUnit Price$0.48218
Ext.Price$0.48218
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.48218 | $0.48218 |
| 10 | $0.34368 | $3.43680 |
| 25 | $0.30949 | $7.73725 |
| 50 | $0.28916 | $14.45800 |
| 100 | $0.27016 | $27.01600 |
| 300 | $0.25521 | $76.56300 |
| 500 | $0.24109 | $120.54500 |
| 1000 | $0.23681 | $236.81000 |
| 3000 | $0.22408 | $672.24000 |
| 5000 | $0.21203 | $1060.15000 |
